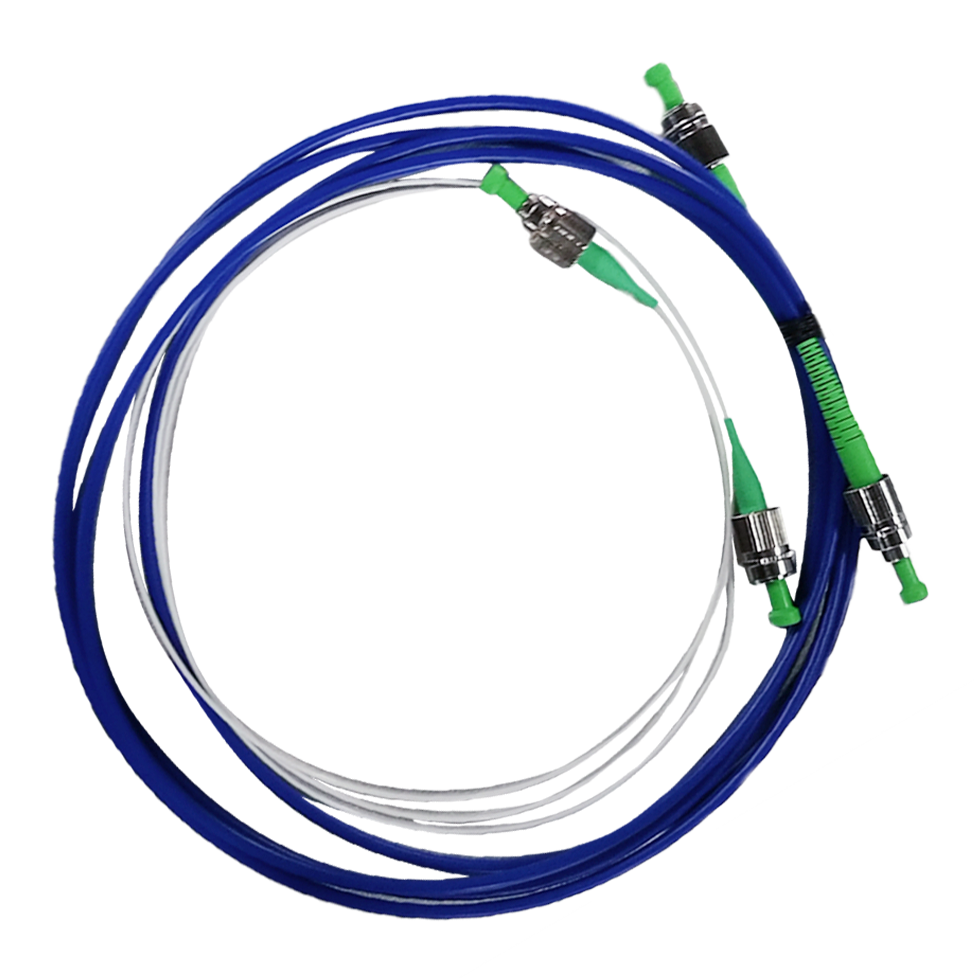

PMJ-D Series Mid Infrared Polarization Maintaining Fiber Patchcords

Connet PMJ-D series mid-infrared polarization maintaining fiber patchcords are specially designed for mid-infrared wavelength application, ranging from 1900nm to 2200nm. The typical working wavelength is 1908nm, 1940nm, 1950nm and 2050nm.

Connet PMJ-D series mid-infrared polarization maintaining fiber patchcords adopt PANDA type polarization maintaining fiber and the slow Axis alignment, along with high-precision FC fiber connectors and ceramic ferrules for high quality.

Connet uses each of the most demanding processes to carefully craft each polarization-maintaining fiber patchcords to ensure high return loss and high polarization extinction ratio(PER), concentricity deviation, control of shaft angle deviation and strict reliability experiments make these polarization-maintaining fiber patchcords meet the industry's highest quality standards.

Connet PMJ-D series mid-infrared polarization maintaining fiber patchcords use Narrow Key (2.0mm) FC fiber optic connectors with multiple connection options, including FC / UPC, FC / APC, and hybrid FC / UPC to FC / APC patchcords.

Specifications:

Parameter	Unit	Specification
Part no.		PMJ-D-980	PMJ-D-1064	PMJ-D-1310	PMJ-D-1550
Fiber type		PM980B-XP	PM980B-XP	PM1300B-XP	PM1550B-XP
Operating wavelength	nm	970-1550	970-1550	1270-1625	1440-1625
Core diameter	um	5.5	5.5	8.0	8.5
MFD	um	6.6±0.5@980nm	6.6±0.5@980nm	9.3±0.5@1300nm	10.1±0.4@1550nm
Core NA	NA	0.12	0.12	0.12	0.12
Cut-off wavelength	nm	920 ± 50	920 ± 50	1210 ± 60	1380 ± 60
Core attenuation	dB/km	≤ 2.5 @ 980nm	≤ 2.5 @ 980nm	≤ 1.0 @1300 nm	≤ 0.5 @1550 nm
Beat length	mm	≤ 2.7 @ 980 nm	≤ 2.7 @ 980 nm	≤ 4.0 @1300 nm	≤ 5.0 @ 1550 nm
Connector type		FC/UPC FC/APC	FC/UPC FC/APC	FC/UPC FC/APC	FC/UPC FC/APC
Connector key	mm	Narrow key 2.0±0.02
Key alignment type		Narrow key aligned to slow axis
Return loss(FC/UPC)	dB	>55	>55	>55	>55
Return loss(FC/APC)	dB	>65	>65	>65	>65
Insertion loss	dB	<0.5	<0.5	<0.5	<0.5
Polarization extinction ratio (PER)	dB	>23	>23	>25	>25
Jacket	mm	0.9，2.0，3.0
Fiber length	m	1，2，3，5，10
Tolerance	cm	1~10
Operating temperature	℃	-20~+70
Storage temperature	℃	-40~+85

Ordering information:

· PMJ-D-1950-FA/FA-09-050: PMJ-D series 1950nm polarization maintaining fiber patchcords ;5m length ,0.9mm jacket, FC/APC-FC/APC

· PMJ-D-2000-FA/FA-09-050: PMJ-D series 2000nm polarization maintaining fiber patchcords ;5m length ,0.9mm jacket, FC/APC-FC/APC

Features:

· Narrow key FC connector

· High PER

· High return loss

· Low insertion loss

· PANDA PMF

Applications:

· Laser to PMF coupling

· Fiber Optic sensing

· Coherent communication

· Component pigtails

· Other scientific research
