1550nm Long Pulse Single Frequency PM Fiber Laser (HP)

Connet CoLIS-HP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser specially designed for long-distance coherent Doppler wind lidar application. This fiber laser is for long-pulse applications (100ns-2us) based on eye-safe operating wavelength. The output laser is the single-mode linear polarization with the output single-pulse energy up to 150uJ.

CoLIS-HP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser internally integrates with Connet's proprietary single-frequency narrow linewidth seed laser source with the linewidth being narrow to 5kHz. The extinction ratio can be up to 100dB or more through the cascaded acousto-optic modulator (AOM) to produce a pulse signal with high turn-off ratio.



Connet CoLIS-HP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser adopts all PM fiber design and can achieve the high polarization extinction ratio (PER) output. The output end can be integrated with high power three-port optical circulator according to the application requirements.


Specifications:

Parameter

Unit

Specification

Min

Typ.

Max

Part no.



CoLIS-1550-M-SF-HP

Operating wavelength1

nm

1545

1550

1565

Peak power2(@200ns)

W

-

-

750

Pulse energy (@200ns, 20kHz)

uJ

-

-

150

Average power

W

0.75

-

3

Linewidth (Seed Laser)

kHz

1

10

15

Pulse width3

ns

100

200

2000

Repetition rate4

kHz

5

-

20

Beam quality

M2

-

<1.3

1.5

Pulse on-off ratio (ER Square Wave)

dB

90

100

-

Frequency shift

MHz

-

-

80

Polarization Extinction Ratio (PER)

dB

20

23

-

Output power stability (8hrs)

%

-

±0.5

±1

Built-in circulator



Optional

Output isolation

dB

35

-

-

Power supply

VDC

12-24

Operating temperature

-20

-

+50

Storage temperature

-40

-

+85

Output fiber type



PLMA-GDF-25/300

Output fiber length

m

>0.5

Optical connector



FC/APC or other optional

Output power of intrinsic light

mW

~1

Output fiber type of intrinsic light



PM1550-XP

Output connector of intrinsic light



FC/APC

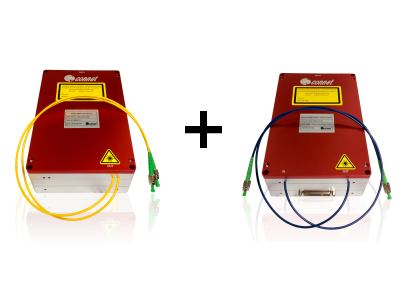

Dimensions

mm

Seed Laser: 200x135x55

Amplifier: 200x135x41


Specifications:

· Other wavelength is optional.

· For higher output power, please contact Connet.

· Pulse width is optional. For wider pulse width, please contact Connet.

· Other repetition rate is optional.


Ordering Information:

· CoLIS-1550-M-SF-HP-XX-YY-ZZ-FA

· XX: Pulse width in ns

· YY: Repetition rate in kHz

· ZZ: Peak power in W

· Example: CoLIS-1550-M-SF-HP-200-10-500-FA

1550nm Long Pulse Single Frequency Polarization Maintaining Fiber Laser, 200ns pulse width,10kHz repetition rate, 500W peak power with FC/APC connectors

Features:

· Eye-safe Wavelength: 1550nm

· Single Pulse Energy: up to 150uJ

· Adjustable Repetition Rate: 5-20kHz

· Pulse Width: 100-2000ns

· Excellent Beam Quality: M2<1.3

· High Polarization Extinction Ratio (PER)

Applications:

· Coherent Doppler Wind LiDAR

· Environmental Monitoring

· Pollution Monitoring

· Other Scientific Research
