2.0um Band Single Frequency PM Fiber Amplifier (15-50W)

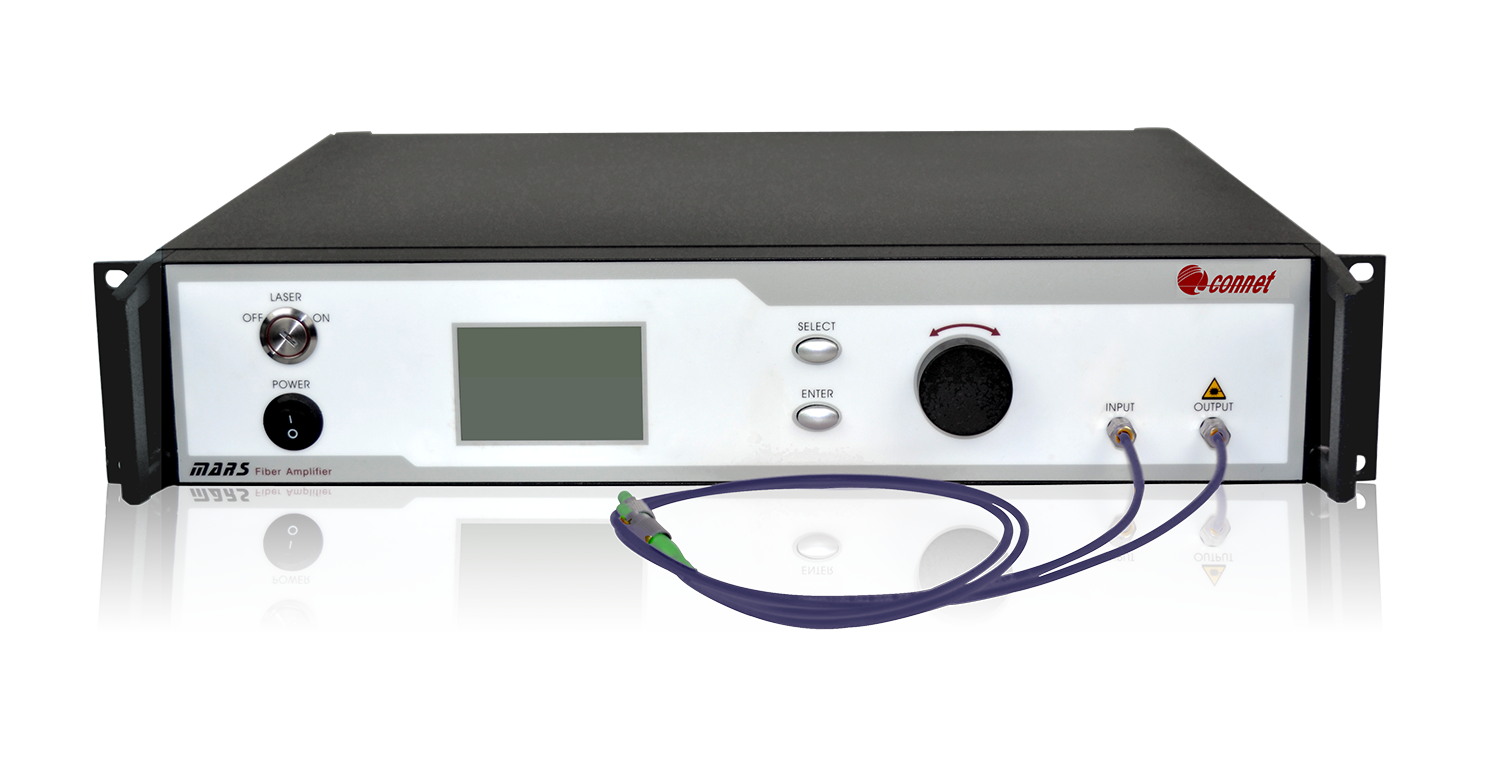

Connet MARS Series High-power Single Frequency Polarization Maintaining Fiber Amplifier is a power amplifier specially designed for ultra-narrow linewidth and single-frequency signal light (such as fiber laser based on DFB and DBR principle). The amplifier is capable of amplifying low-power optical signals in kHz level up to 50W output power and meanwhile maintaining the spectral characteristics of the input signal light. The MARS series amplifiers adopt the high-power, high-performance single-mode and multi-mode pump lasers internally with the cascaded core pumped and double-clad fiber amplification technology and the integrated design of full polarization-maintaining structure to achieve the continuous output power. The MARS Series Fiber Amplifier is a complete Turn-Key system with microprocessor control inside and one LCD and some control buttons on the front panel.

Connet optimizes the design of high-power polarization-maintaining fiber amplifiers with rich experience of double-clad fiber processing to achieve high-efficiency output and suppress nonlinear effects of optical fibers. The unique heat treatment process ensures long-term stable operation of fiber amplifiers. The professionally designed high-speed response protection circuit automatically monitors the input optical signal power and output power to ensure that the high-power pumping operation is quickly cut off when the input optical signal is dropped, thereby ensuring the safety of the entire system.

The MARS series high-power single frequency polarization-maintaining fiber amplifier of Connet uses the unique polarization control technology and a leading polarization-maintaining fiber fusion process to ensure the stable linear polarization output under high power conditions.

MARS series high power polarization-maintaining fiber amplifiers can be widely used in scientific research, coherent combination, LIDAR, coherent detection and sensing systems, etc.

Specifications:

Ordering Information:

· MFAP-Tm-xxxx-B-SF-FA/Col-HP

· B: Benchtop

· xxxx: Operating wavelength, e.g.: 1940nm, 1908nm

· SF: Single frequency

· FA: FC/APC, Col: Collimator

· HP: High output power
