1.5um High Power Chirped FBG for Fiber Laser
Connet high-quality 1.5um fiber grating reflectors (also called Fiber Laser cavity mirrors) are written in specialty double clad optical fiber with optimized chirped Fiber Bragg Grating (FBG) writing technology. They are specially designed for 1.5um high power continuous and pulsed fiber lasers, suitable for single-mode fiber to the large mode field (LMA) fiber, the pump power handling capacity can reach more than 50W.
Connet can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications.

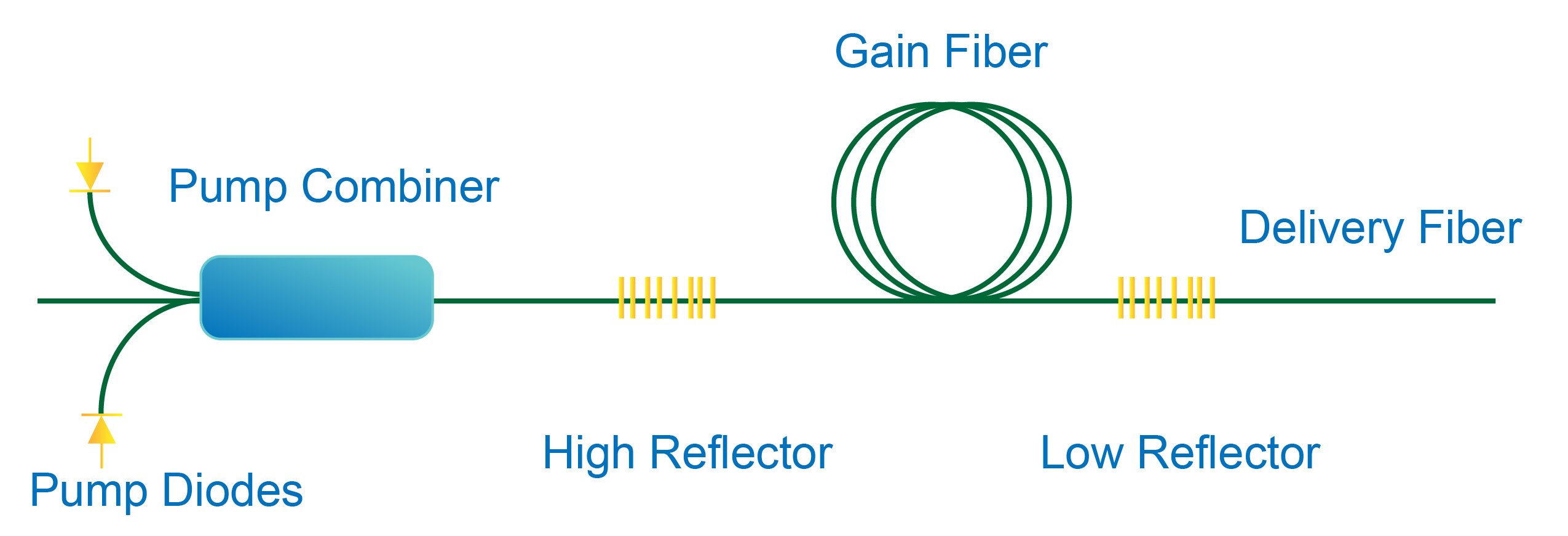

High Power Fiber Laser Configuration:

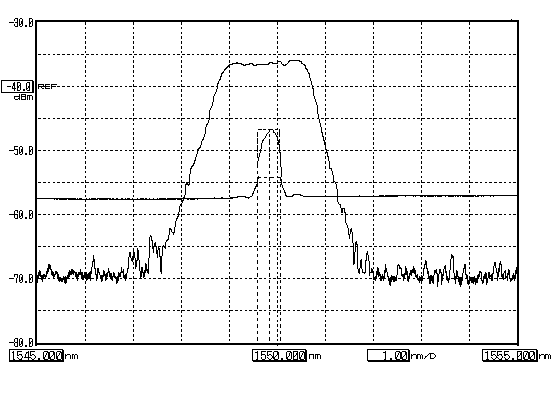

Matched HR/LR Spectrum:
Specifications:
Parameter
Unit
Specification
Typical Central Wavelength1
nm
1550, 1560
Tolerance on Central Wavelength
nm
1
Type of Reflector
HR
LR
Peak Reflectivity2
%
>99.5
10±2
FWHM2 (3dB)
nm
0.5~3
0.1~1
Side Mode Suppression Ratio
dB
20
10
Wavelength Mismatch (LR to HR)
nm
0.2
Fiber type3
SM-1550-GDF
Power Handling of Pump
W
50
Input/output Fiber Length
m
1
Package Type
Recoated Only
Notes:
1. Other central wavelength available on request.
2. Other bandwidth and reflectivity available on request.
3. Other fiber types available on request.

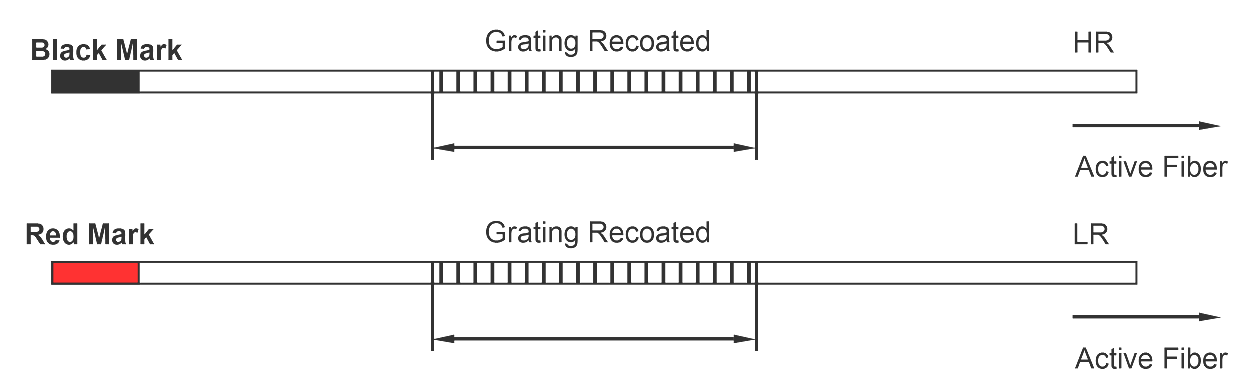

Package Dimensions:
Ordering Information:
F-1111-2-333-4-5-66
l 1111: Fiber Type
0912: 9/125um, SM-1550-GDF (NA=0.12/0.46)
l 2: Grating Type
H: High Reflector
L: Low Reflector
l 333: Central Wavelength in nm
550: 1550nm
l 4: Bandwidth in nm
2: 2nm
*05: 0.5nm
l 5: Package
M: Metal Housing
R: Recoated
l 66: Reflectivity in %
99: 99%
10: 10%
Features:
· Extremely Low Temperature SlopeApplications:
· High Power Fiber Laser
